Sabfoil M83K – W799 – S430 – F703K – CP02K

Sabfoil M83K – W799 – S430 – F703K – CP02K

This kit, developed in collaboration with pro-rider Balz Muller and enhanced with a full-carbon plate, is ideal for Wing-Foil, in particular for Freestyle and Freeride in moderate-strong winds.

Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can change your setup at any time, without any problems.

The kit C83799K consists of:

• Mast: M83K – 830 mm
• Front Wing: W799 – 1100 cm2
• Stabilizer: S430 – 240 cm2
• Fuselage: F703K – 703mm
• Mast Plate: CP02K

It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.

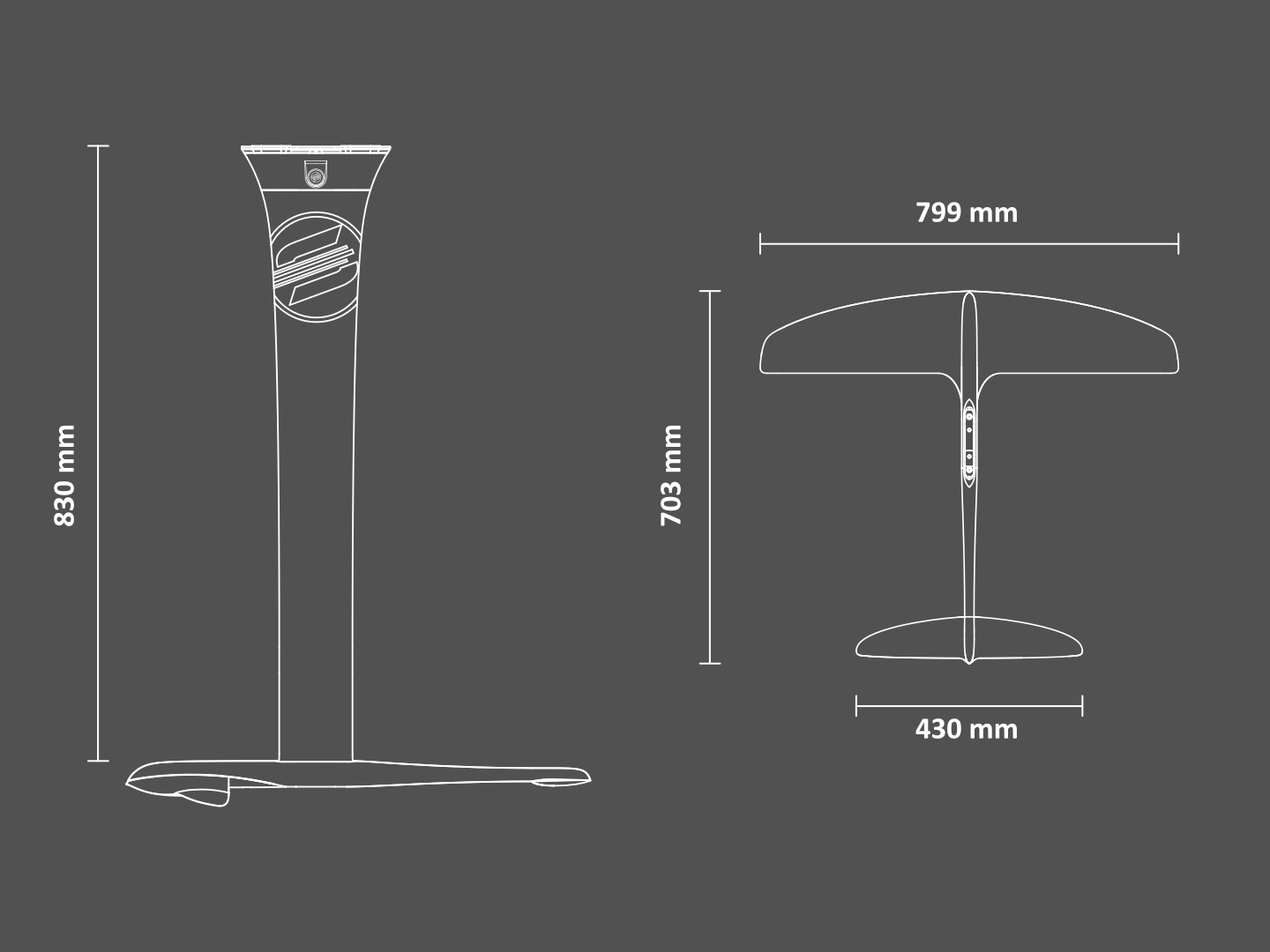

DIMENSIONS & ADVANCED SPECS

Mast – Height	830 mm
Front Wing – Span	799 mm
Front Wing – Surface	1100 cm2
Front Wing – Root Chord	170 mm
Front Wing – Aspect Ratio	5.8
Stabilizer – Span	430 mm
Stabilizer – Surface	240 cm2
Stabilizer – Root Chord	68 mm
Stabilizer – Aspect Ratio	7.7
Fuselage – Length	703 mm
Foil Set – Weight [±5%]
Board Connection Type	Carbon Plate
